LYD Orbit smart inverter mounted in a sunlit modern interior

The Energy Core

Orbit

The premium smart-inverter family that sits between sun, battery, grid, and load — from a 1.5 kW apartment to a 1.25 MW microgrid. Five residential SKUs plus the Orbit X commercial tier, all on one platform.

1.5 kW – 1.25 MW

Power range

Off-grid / Hybrid

Choose your mode

IP20 / IP66

Indoor or outdoor

The series

One, Three, Five, Seven, Nine.

An ascending odd-number progression — each step a measurable jump in continuous power and intelligence. One SKU for the apartment, one for the standard home, one for the large home, one for the villa or office, one for the industrial site. Every Orbit speaks the same Lucid OS, talks to the same SafeCell, and ships in your choice of IP rating and operating mode.

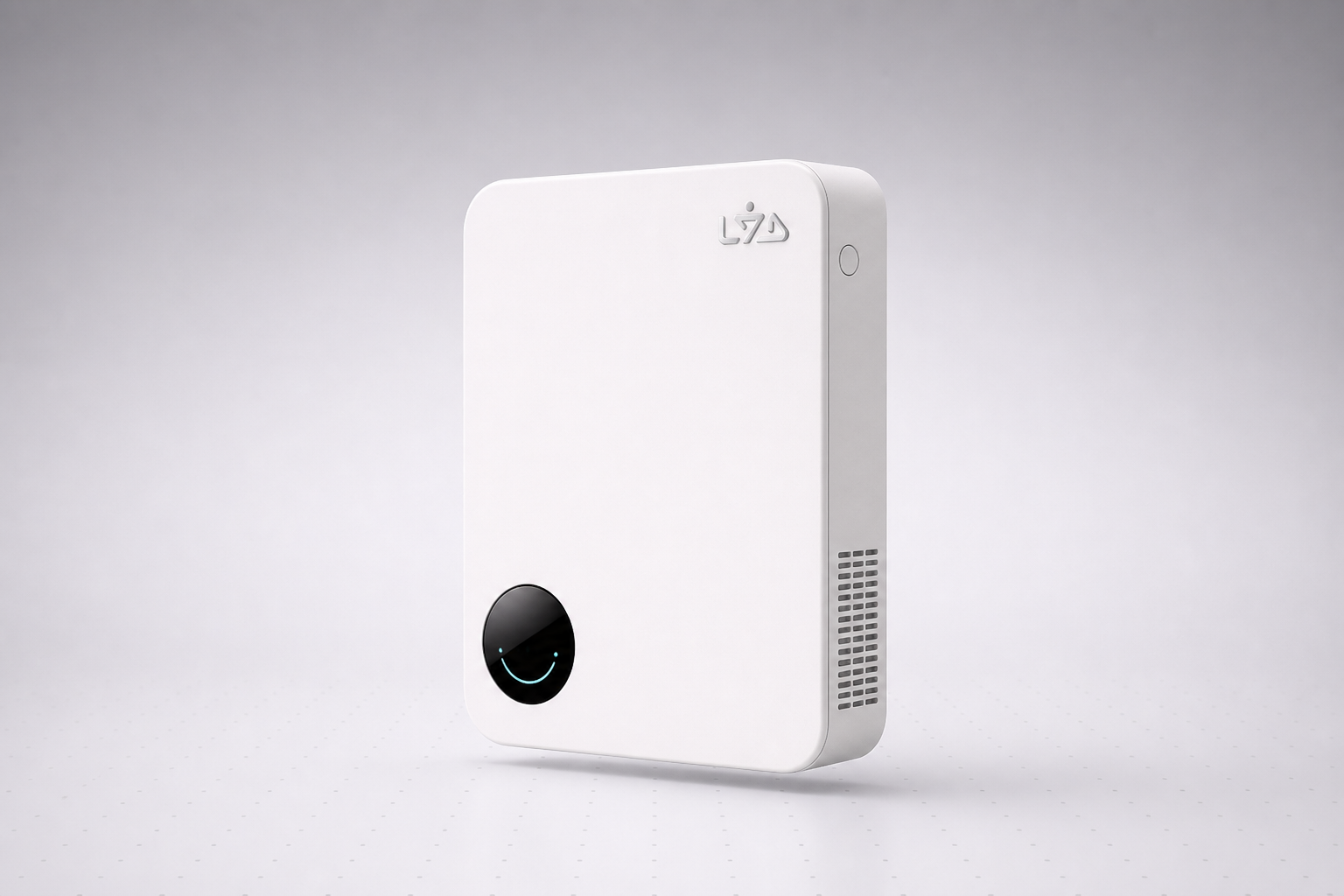

LYD Orbit One — 1.5 kW wall-mount smart inverter for apartments and small homes
Entry
1
Essential Energy Core

Orbit One

The entry point into energy independence.

Up to 1,500 W

Continuous power

Ideal for

Apartments & small homes — backup, light loads, single-MPPT solar.

Sized for a one-bedroom flat or a compact home that wants reliable backup, basic solar input, and the same Lucid OS intelligence that runs across the whole Orbit line. The smallest, slimmest Orbit — barely thicker than a thermostat panel.

  • Up to 1.5 kW continuous
  • Single MPPT, 1 kW PV input
  • Slimmest profile in the range

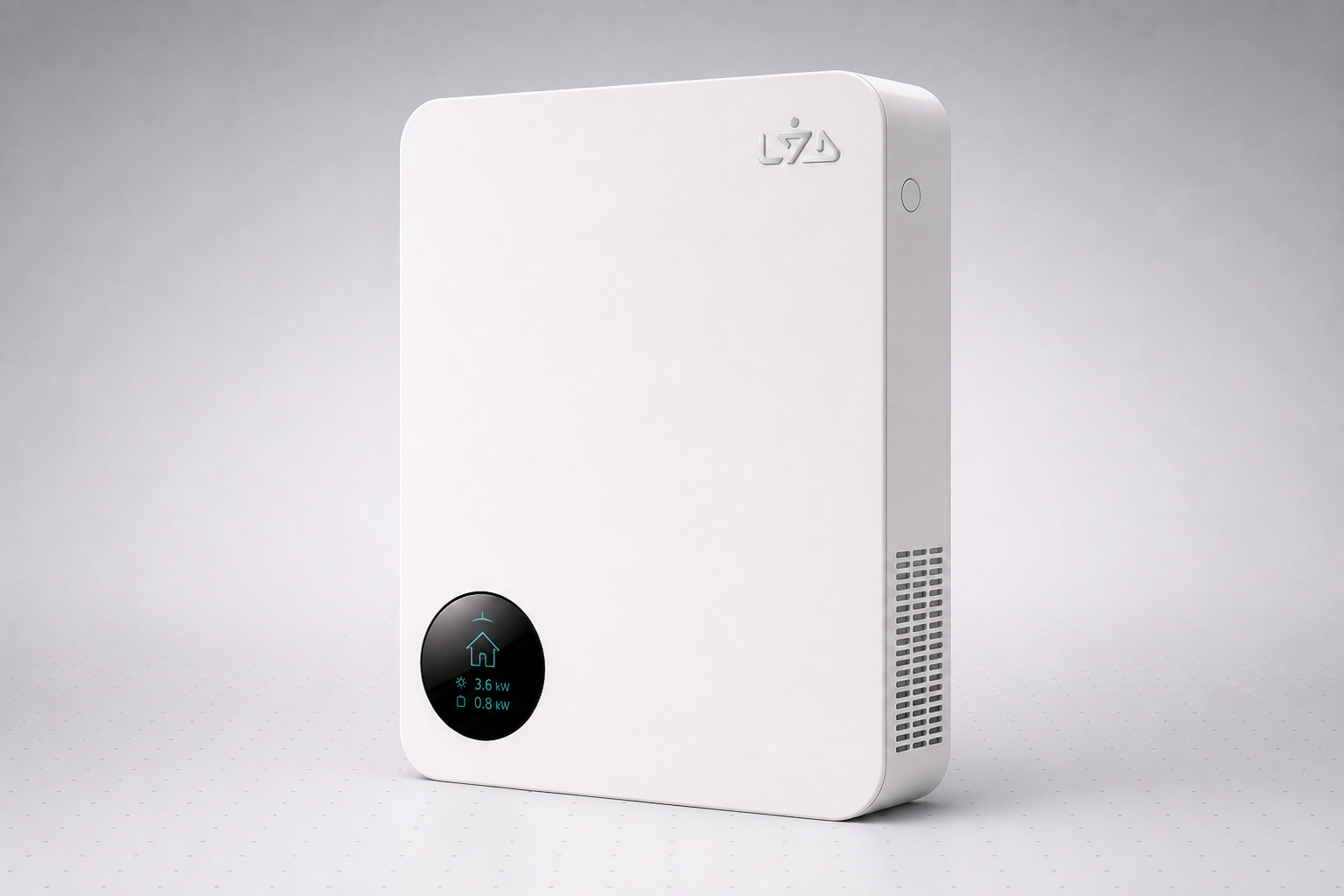

LYD Orbit Three — 4 kW wall-mount smart inverter for standard homes
3
Smart Home Energy Core

Orbit Three

More power for growing energy demands.

Up to 4,000 W

Continuous power

Ideal for

Standard homes — full backup, dual-MPPT solar, heat-pump-friendly.

The everyday Orbit. Sized for a three-to-four-person home with solar on the roof, a SafeCell on the wall, and the usual cocktail of fridges, induction tops, and heat pumps. Dual MPPT inputs let you run two roof orientations from one unit.

  • Up to 4 kW continuous
  • Dual MPPT, 5 kW PV input
  • Heat-pump friendly surge

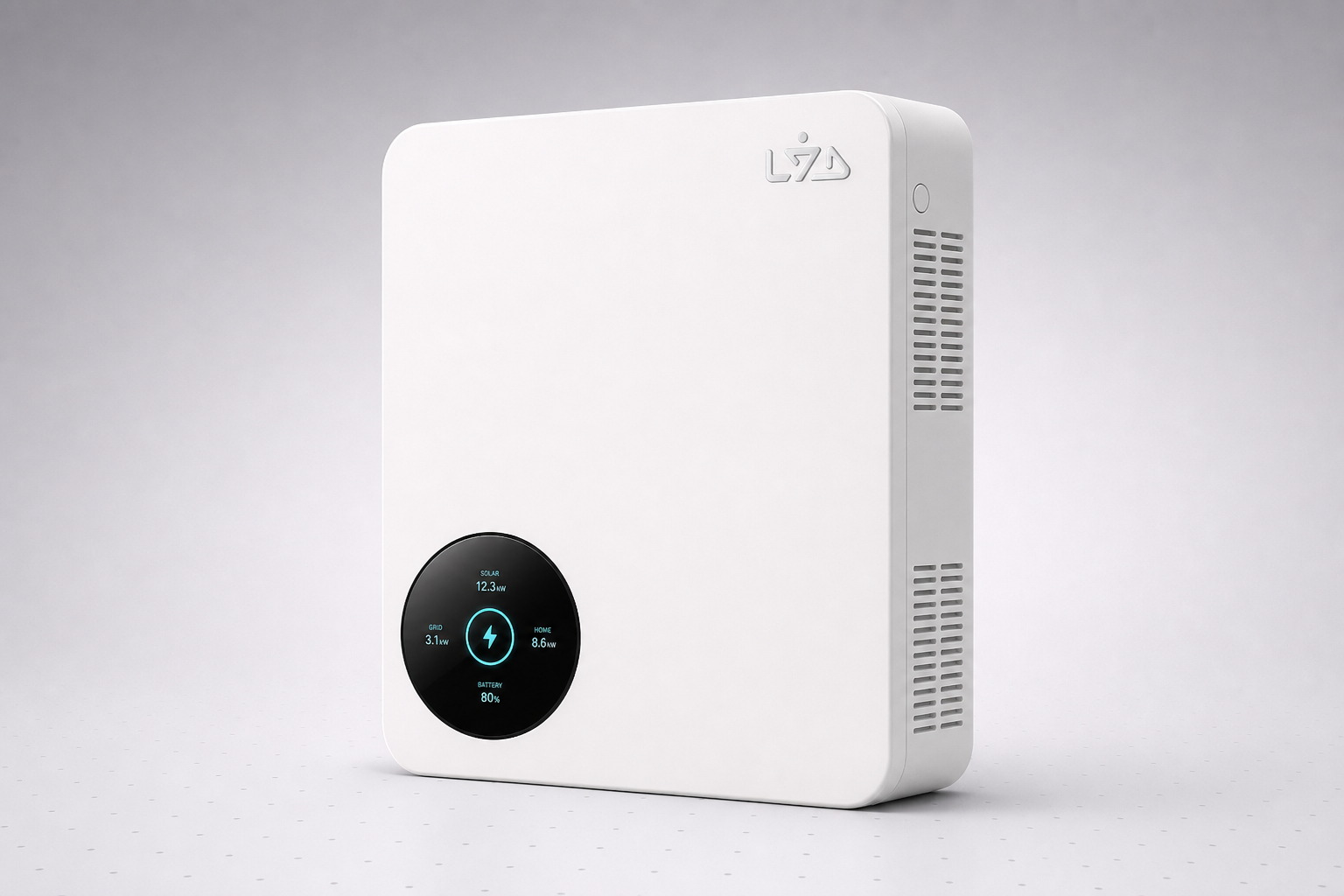

LYD Orbit Five — 7 kW wall-mount smart inverter for large homes
Most popular
5
Advanced Energy Core

Orbit Five

The balance of performance and intelligence.

Up to 7,000 W

Continuous power

Ideal for

Large homes — whole-home backup, multi-string solar, EV charging.

For larger residences that want everything online during a grid event — including the EV charger. Three MPPT inputs handle complex roofs and ground-mounts; the higher battery-port amperage means SafeCell stacks charge faster from peak sun.

  • Up to 7 kW continuous
  • Triple MPPT, 9 kW PV input
  • EV-charger ready

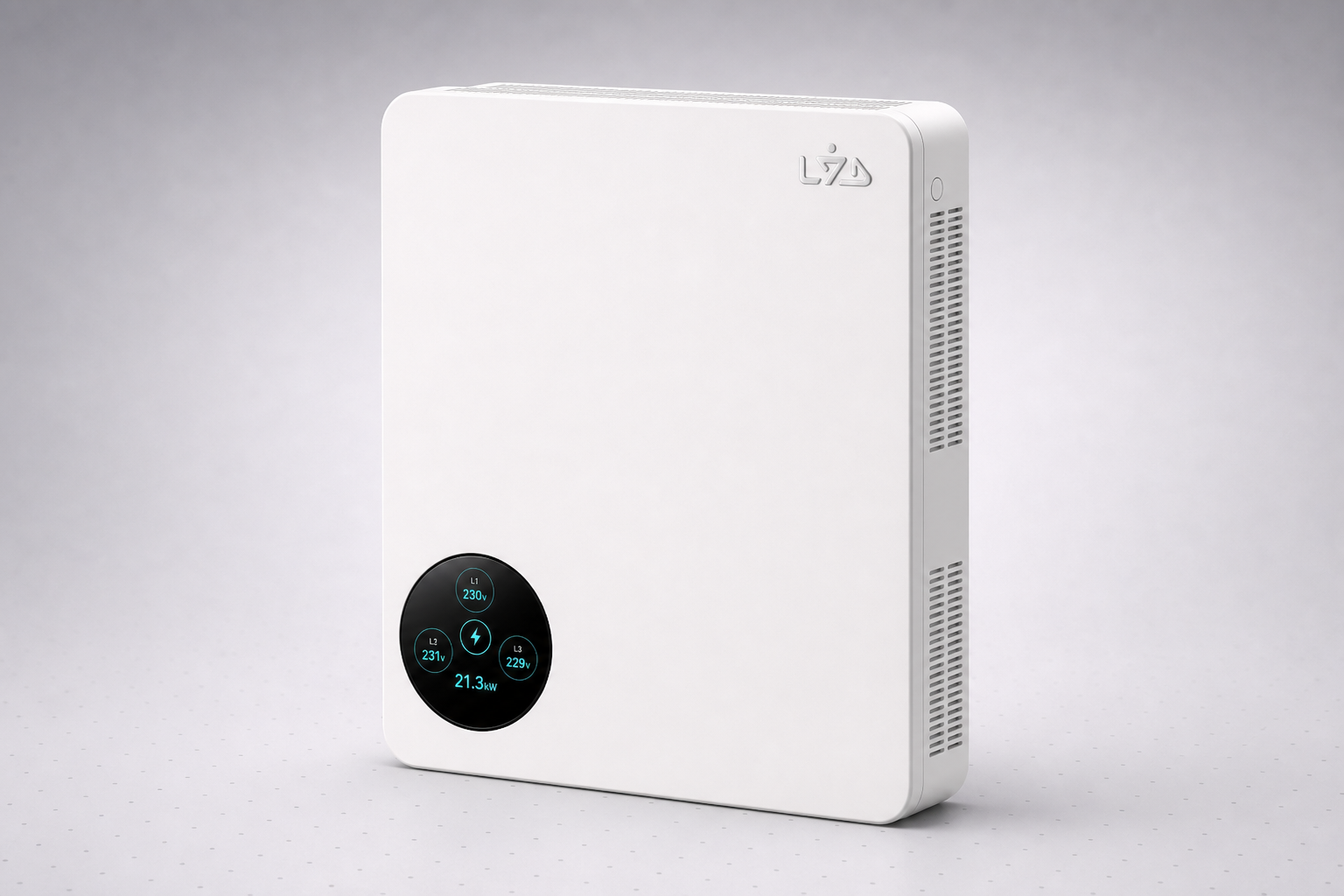

LYD Orbit Seven — 12 kW three-phase smart inverter for villas, offices, and SMEs
7
Premium Energy Core

Orbit Seven

Designed for energy-intensive homes and businesses.

Up to 12,000 W

Continuous power

Ideal for

Villas, offices & SMEs — three-phase backup, high-draw loads.

Three-phase by default. Engineered for villas with extensive HVAC, small offices, and SMEs that need utility-grade reliability without the utility-grade footprint. Quad MPPT inputs scale to large solar arrays; the OLED face renders all three phases on a single ring so a quick glance tells you the whole load story.

  • Up to 12 kW continuous
  • Quad MPPT, 16 kW PV input
  • Three-phase output

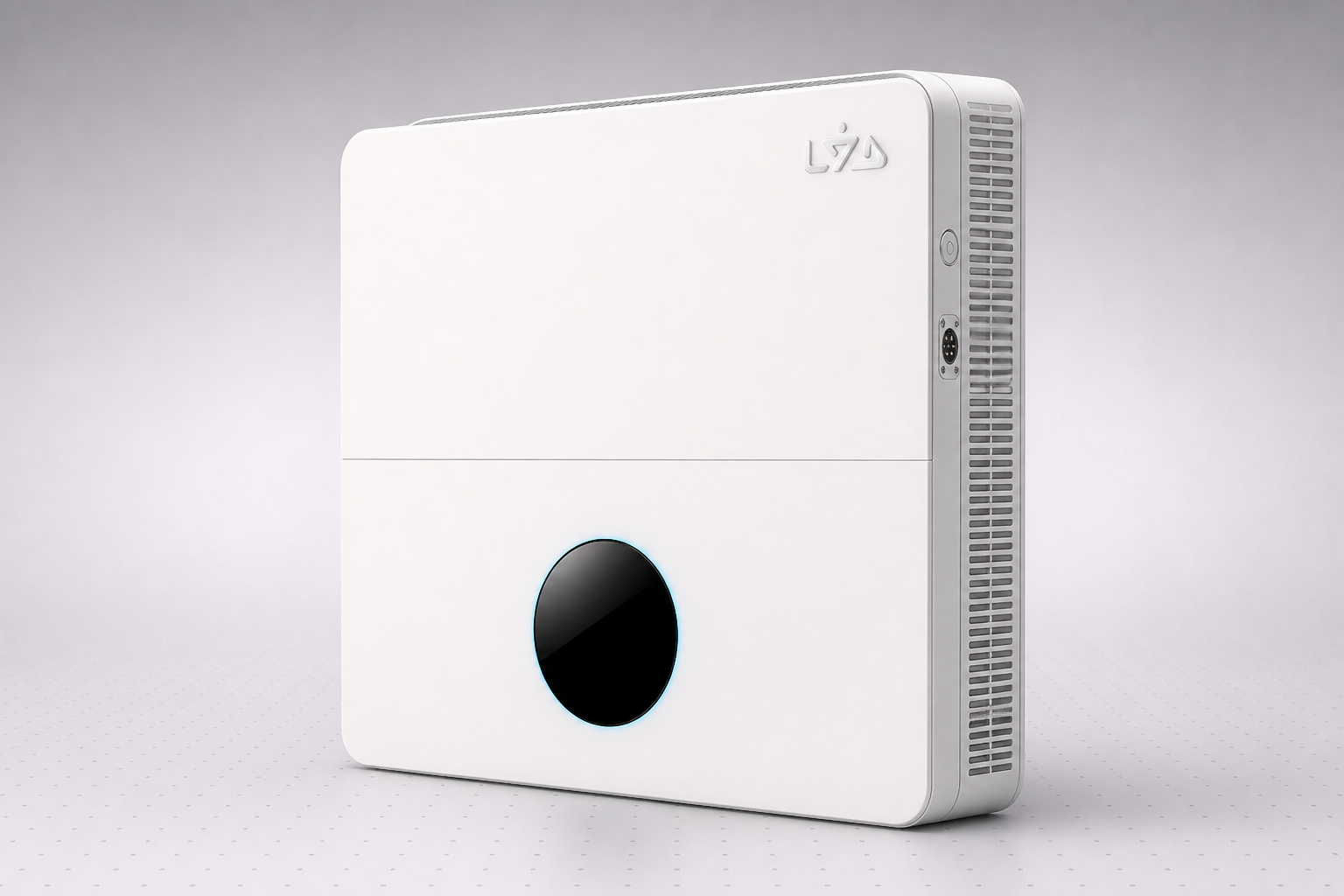

LYD Orbit Nine — 20 kW commercial three-phase smart inverter
Flagship
9
Enterprise Energy Core

Orbit Nine

Enterprise-grade energy management.

Up to 20,000 W

Continuous power

Ideal for

Commercial & industrial applications — clinics, factories, microgrids.

The flagship. Built for clinics, light industry, distributed commercial sites, and microgrid deployments. Stacks in parallel for over 100 kW of installed capacity, and runs the full Lucid OS Enterprise stack with Modbus and SCADA hooks for the operations team.

  • Up to 20 kW continuous
  • Six MPPT, 26 kW PV input
  • Parallels to 100 kW+

Operating mode

Off-grid or Hybrid. You pick the wiring story.

Every Orbit ships in one of two electrical configurations, selected at order. The chassis and the OLED face are the same — the difference is whether Orbit is also tethered to the utility grid, and what happens when that tether drops.

Mode

Off-grid

Solar + SafeCell only. No utility tether.

For homes and sites with no grid connection — or anyone who simply wants to be independent of the utility entirely. Orbit runs the property directly from solar during the day and SafeCell at night, with the OLED face showing exactly how much runway you have left.

  • No grid connection required
  • Solar + SafeCell only
  • Built-in load prioritisation when reserves are low
Mode

Hybrid

Grid-tied. Solar, battery, utility, all in one box.

Connects to the utility grid in parallel with solar and SafeCell. Orbit decides moment-to-moment which source feeds the home — and, where regulations allow, sells surplus back to the grid. When the grid drops, the switchover to battery is fast enough that the lights don't blink.

  • Grid-tied with seamless backup
  • Sells surplus where regulations permit
  • Tariff-aware charging via Lucid OS

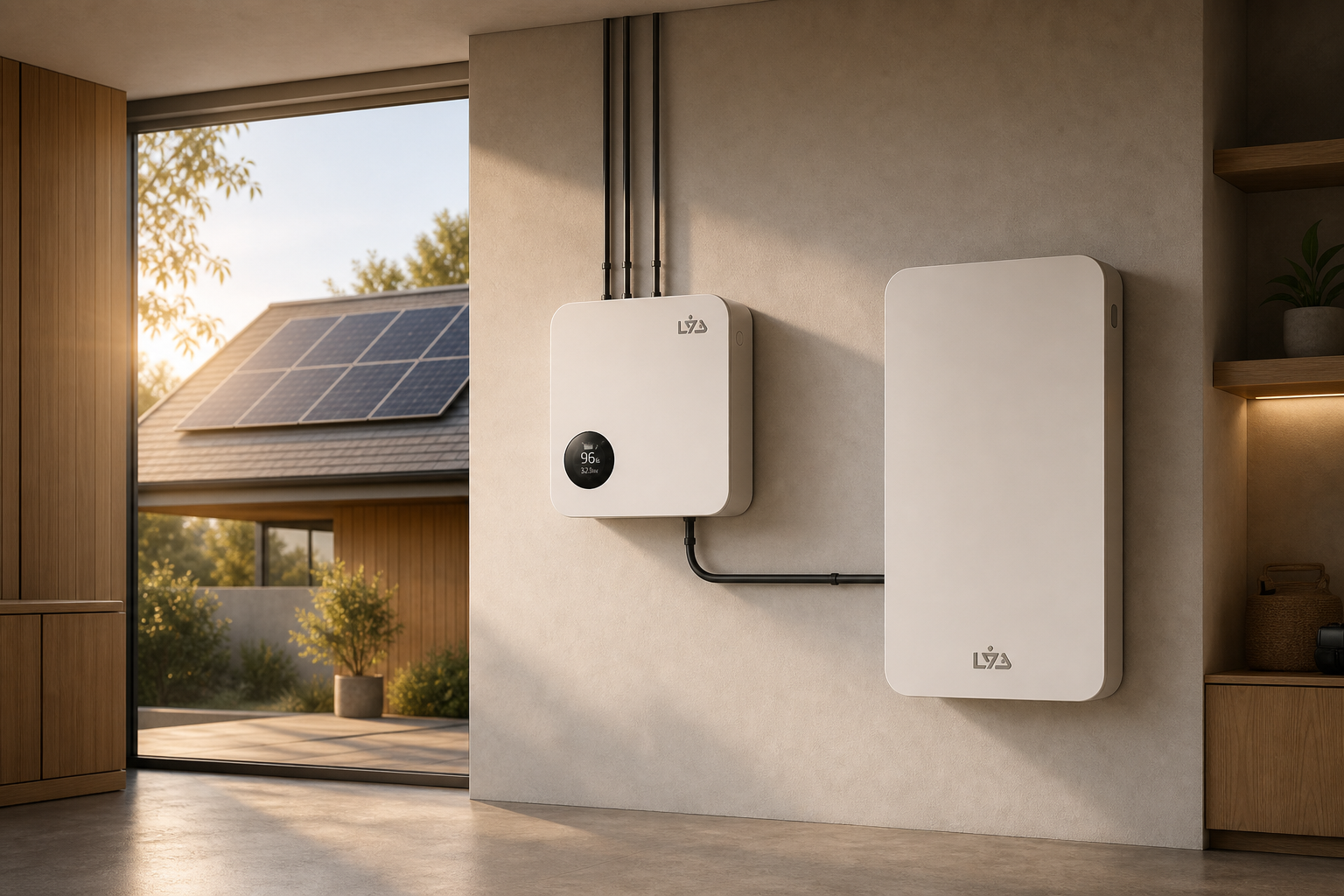

Visual showing an Orbit smart inverter at the centre of an energy system — solar above, SafeCell beside, grid tether optional

One chassis. Two ways to run a property.

Decide at order. Re-wire never.

Pick your environment

IP20 or IP66 — same Orbit, dressed for the wall.

Every Orbit SKU ships in one of two environmental ratings, specified at order time. The internals and the OLED face are identical. The difference lives in the chassis — gaskets, connector seals, and the depth of the cooling louvers.

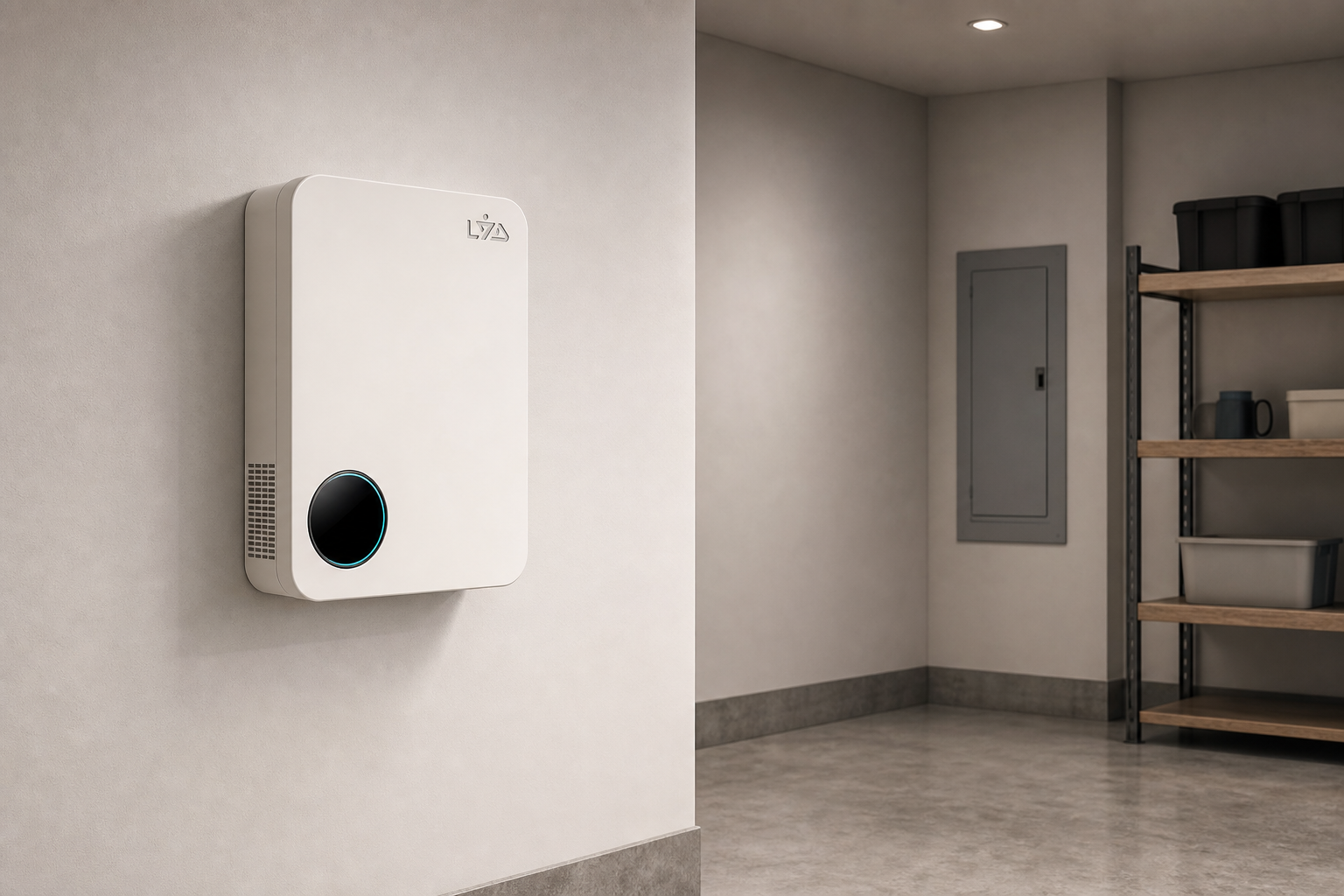

LYD Orbit IP20 indoor installation in a utility room
IP20

IP20 — Indoor

For clean, climate-controlled rooms.

Designed for utility rooms, garages, and indoor cabinets where the environment is stable. Quieter visual finish, slightly lighter chassis, same Orbit intelligence underneath.

Dust

Dust-protected

Water

Indoor only

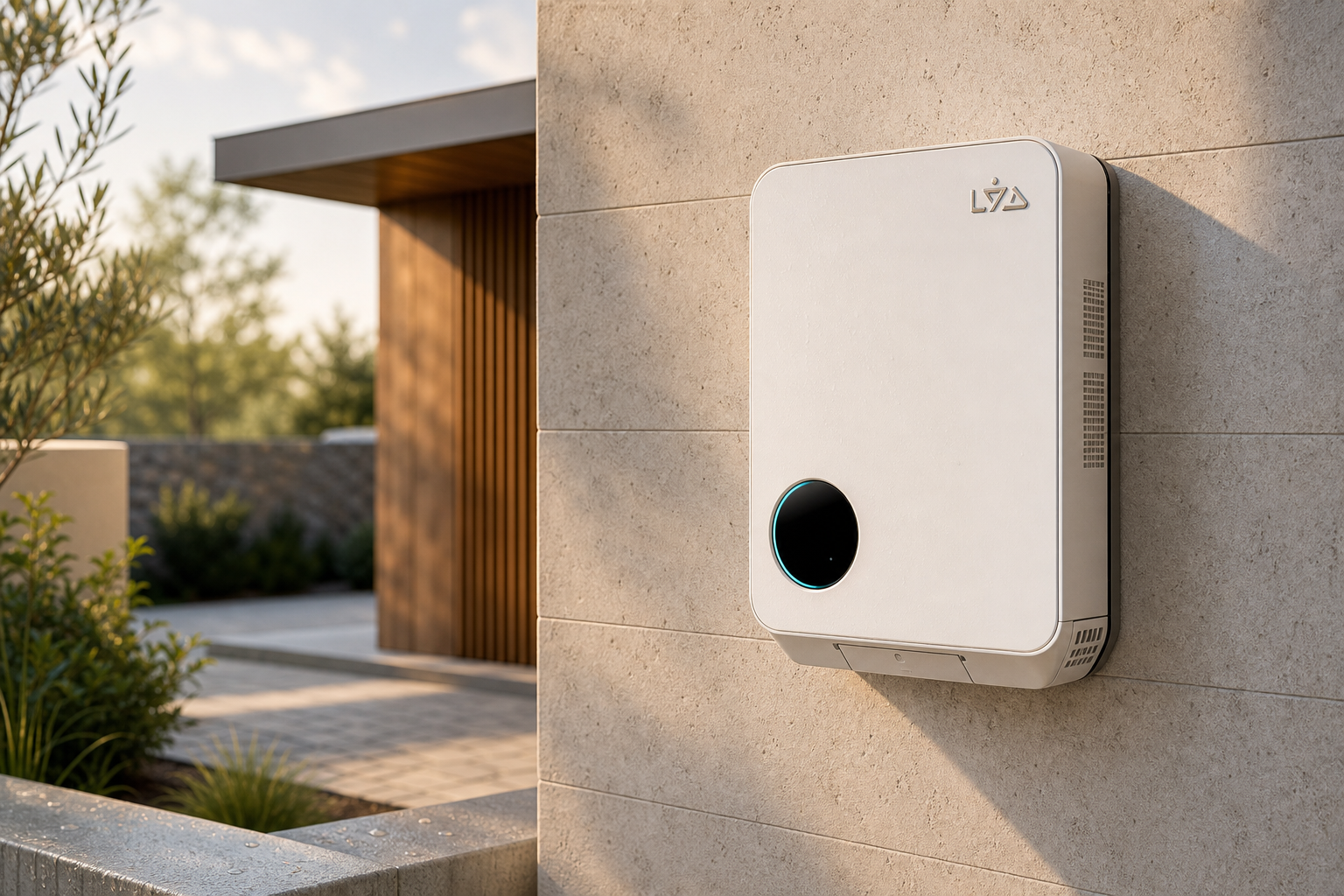

LYD Orbit IP66 outdoor installation on an exterior wall
IP66

IP66 — Outdoor

For exterior walls and exposed sites.

Dust-tight and resistant to powerful water jets from any direction. Built for outdoor walls, carport mounts, agricultural sites, and coastal installations. Reinforced gaskets, sealed connectors, the same calm front face.

Dust

Dust-tight

Water

Powerful jets

Not sure which to pick? IP20 is the call for indoor utility rooms and conditioned plant rooms. IP66 is what you want for outdoor walls, carport mounts, agricultural sites, and coastal installations where salt spray is part of the weather report. Our installers confirm at survey.

The full setup

Orbit + SafeCell. The whole energy system on one wall.

Orbit is the brain. SafeCell is the reservoir. Together they are the LYD energy core — solar flows in, the home draws out, and every joule passing between them is logged and balanced by Lucid OS. Designed to live side-by-side as a coordinated pair.

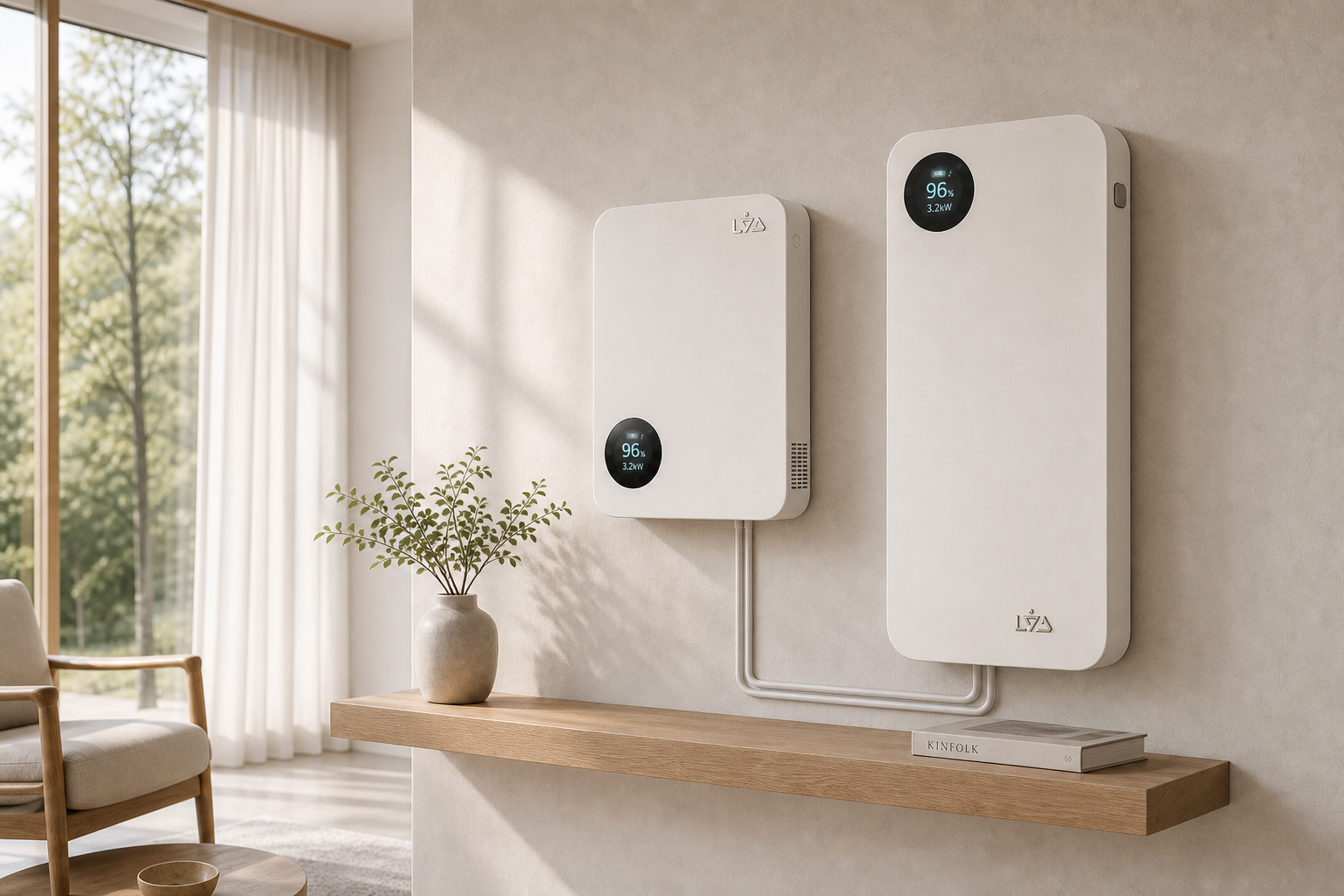

LYD Orbit smart inverter mounted next to a LYD SafeCell energy storage unit in a modern interior wall
Step 01

Solar in

Up to six MPPT inputs depending on the SKU. Orbit pulls every available watt off the array, prioritising the home before the battery.

Step 02

Orbit decides

Lucid OS reads tariff curves, load forecasts, and weather. It charges SafeCell when energy is cheap and discharges when it isn't — automatically.

Step 03

SafeCell stores

A 5 kWh wall-mount or a 45 kWh stack — your call. SafeCell takes whatever Orbit sends and gives it back the moment the home asks.

Already eyeing a SafeCell? See the full storage lineup.

Explore SafeCell

Lucid OS

Every Orbit runs the same brain.

Orbit is the hardware. Lucid OS is what makes it think. From the smallest 1.5 kW unit in a studio flat to the 20 kW commercial Orbit Nine — they all run the same operating system. The intelligence scales with the SKU, not the silicon.

  • Live energy telemetry

    The circular OLED face shows real-time generation, draw, battery state, and grid status. The numbers tick because the inverter is actually doing the work.

  • Phone in your pocket

    iOS, Android, web. Set tariff windows, schedule loads, get alerts when the grid drops. Share read-only access with your installer for remote diagnostics.

  • Forecast-aware charging

    Lucid OS reads weather, tariffs, and your past consumption pattern. It charges SafeCell during cheap-and-sunny windows and dispatches during expensive ones — without you touching a slider.

Discover Lucid OS

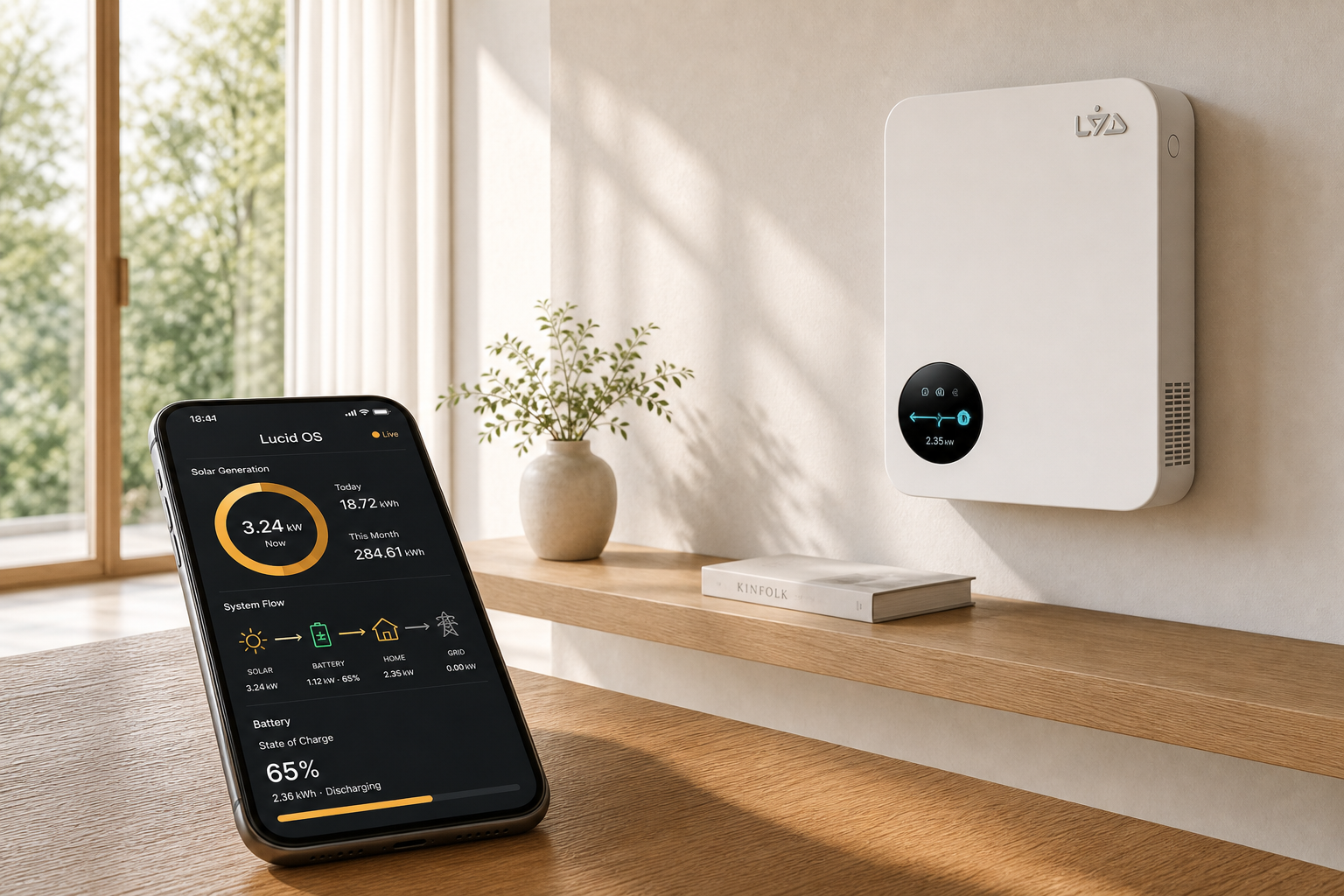

LYD Orbit with the Lucid OS dashboard mirrored on a mobile device

Compare the series

Specs side by side.

Every Orbit shares the same Lucid OS platform, the same 10-year warranty, and the same SafeCell compatibility. The lines below show the dimensions that actually change as you walk up the series.

SKU

Orbit One

Essential Energy Core

Orbit Three

Smart Home Energy Core

Orbit Five

Advanced Energy Core

Orbit Seven

Premium Energy Core

Orbit Nine

Enterprise Energy Core

Continuous AC outputUp to 1,500 WUp to 4,000 WUp to 7,000 WUp to 12,000 WUp to 20,000 W
Peak (5 s) AC output3,000 W8,000 W14,000 W24,000 W40,000 W
MPPT trackers12346
Max PV input1,000 W5,000 W9,000 W16,000 W26,000 W
Battery port48 V, up to 50 A48 V, up to 100 A48 V, up to 150 A48 V, up to 250 A48 V, up to 400 A
Phase configurationSingle-phaseSingle-phaseSingle-phaseThree-phaseThree-phase, parallel-capable to 100 kW+
TierEssential Energy CoreSmart Home Energy CoreAdvanced Energy CorePremium Energy CoreEnterprise Energy Core
Dimensions (W × H × D)350 × 450 × 100 mm450 × 600 × 120 mm500 × 700 × 150 mm600 × 800 × 180 mm700 × 900 × 200 mm
Weight8 kg16 kg24 kg38 kg58 kg
Operating modesOff-grid or HybridOff-grid or HybridOff-grid or HybridOff-grid or HybridOff-grid or Hybrid
IP ratingIP20 or IP66IP20 or IP66IP20 or IP66IP20 or IP66IP20 or IP66
Warranty10 years10 years10 years10 years10 years

Swipe the table horizontally to see all SKUs.

Orbit X

When the building outgrows the wall.

Orbit X is LYD’s commercial and industrial tier — three-phase, IP66-outdoor, parallel-stackable. X50 anchors a factory or a hotel up to 300 kW. X125 takes the same idea to 1.25 MW on a single concrete pad. Both run the same Lucid OS your residential Orbit does, just the Enterprise build with SCADA-grade protocols.

50 → 125 kW

Per-cabinet AC power

1.25 MW

Maximum stacked output

IP66

Outdoor-rated chassis

Lucid OS

Enterprise SCADA / DNP3

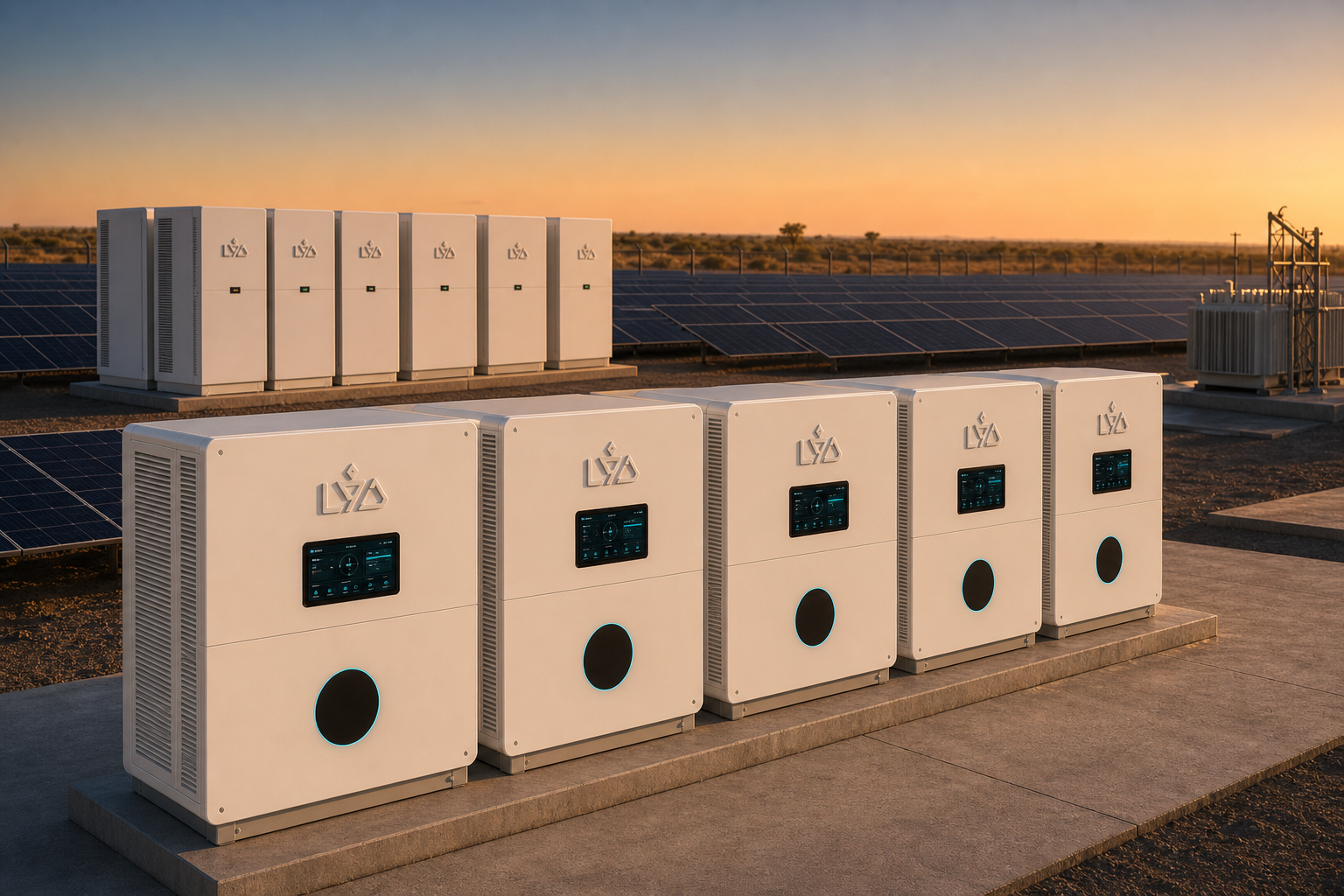

A row of LYD Orbit X industrial inverters installed at a commercial solar plant, paired with a SafeCell Hyperpack BESS in the background

One cabinet is a factory.
Ten cabinets is a microgrid.

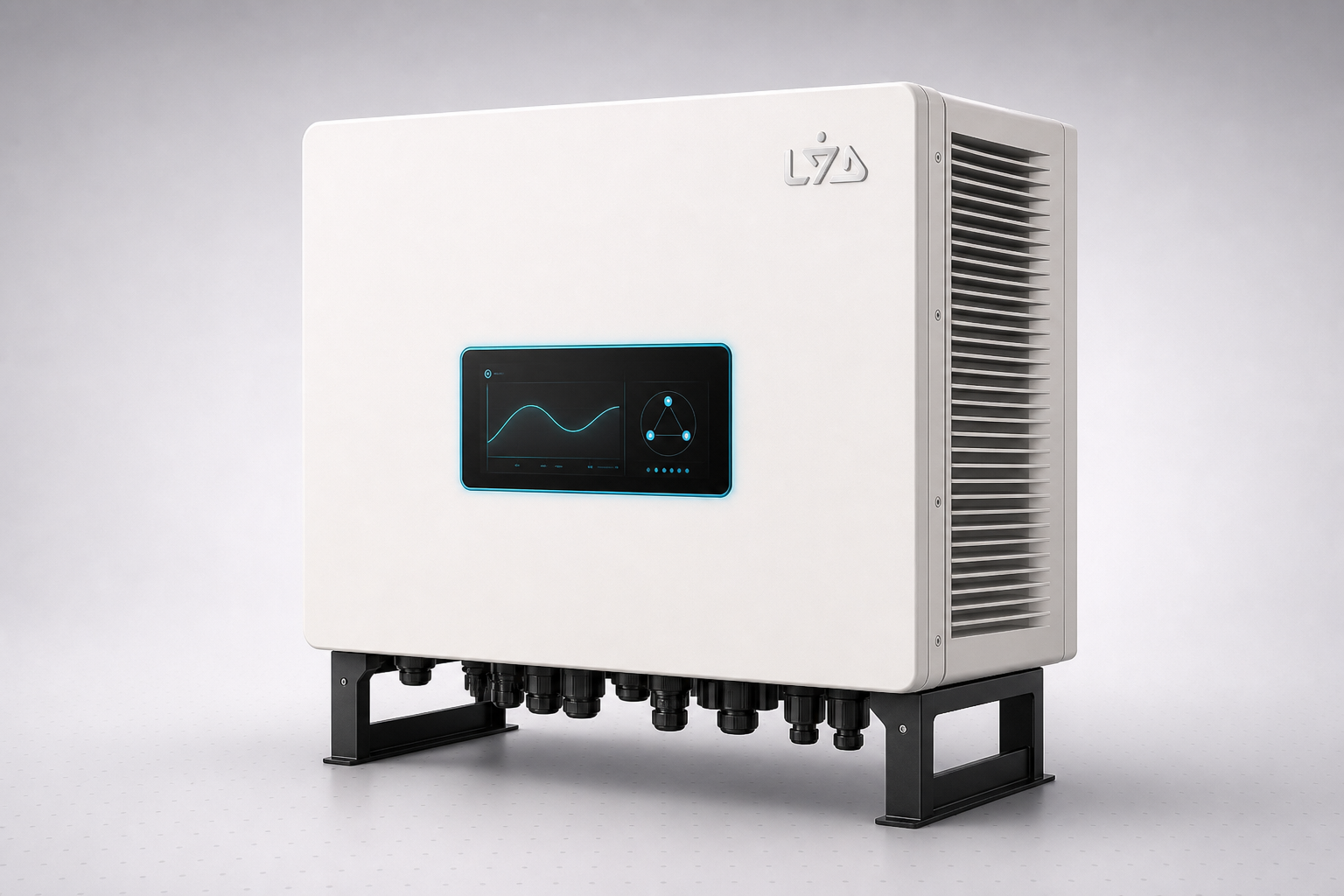

LYD Orbit X50 — 50 kW commercial three-phase smart inverter with industrial chassis and 7-inch touchscreen
50kW

Commercial

Orbit X50

Fifty kilowatts per cabinet. Six cabinets, three hundred.

50 kW

Per cabinet

6

Cabinets max

300 kW

Stacked AC

Orbit X50 is the entry point into LYD’s commercial tier. A 50 kW three-phase inverter built for factories, mid-size offices, and agri-industrial sites. Six MPPT inputs, an IP66 chassis, and a 7-inch touchscreen running Lucid OS Enterprise. Parallel up to six units on a single bus and you have 300 kW of coordinated power without leaving the Orbit platform.

Ideal for

Factories, mid-size offices, hotels, agri-industrial sites — anywhere the load lives between 50 kW and 300 kW.

  • 50 kW continuous, 55 kVA peak
  • 6 MPPT inputs, 1100 V max DC
  • Parallel to 300 kW (6 units)

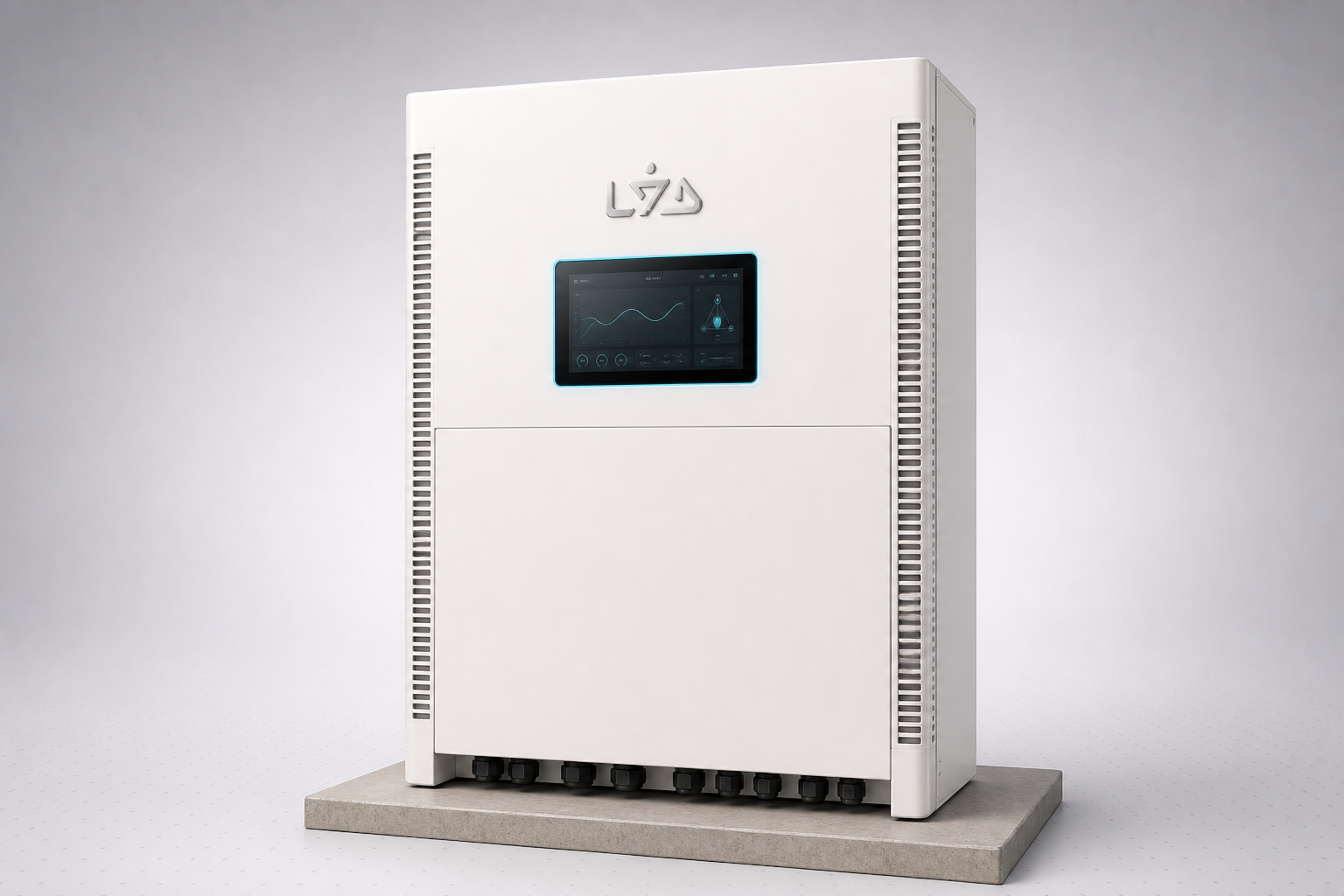

LYD Orbit X125 — 125 kW industrial three-phase smart inverter on a concrete pad with touchscreen HMI
Flagship
125kW

Industrial

Orbit X125

A megawatt-and-a-quarter, on one bus.

125 kW

Per cabinet

10

Cabinets max

1.25 MW

Stacked AC

Orbit X125 is the flagship. A 125 kW three-phase inverter rated for 1500 V string inputs, ten MPPT trackers, and a floor-mount industrial chassis built to live outdoors for twenty years. Drop ten units on a concrete pad and you have 1.25 MW of solar conversion talking to a single Lucid OS Enterprise instance — the kind of footprint that pairs naturally with a SafeCell Hyperpack on the same site.

Ideal for

Industrial plants, data-centres, hospitals, microgrids, Hyperpack-paired BESS sites — 125 kW to 1.25 MW arrays.

  • 125 kW continuous, 137.5 kVA peak
  • 10 MPPT inputs, 1500 V max DC
  • Parallel to 1.25 MW (10 units)

Parallel-stack on one bus

Combine up to six X50 or ten X125 cabinets on a shared AC bus. Lucid OS load-shares automatically; no master controller required.

IP66, by default

Outdoor-rated chassis with dust-filtered forced-air cooling. Built to live on a substation pad or a rooftop in coastal humidity.

Lucid OS Enterprise

SCADA, Modbus TCP/RTU, DNP3, CAN. The same dashboard your residential Orbit uses, with the protocols your facilities team needs.

Pairs with Hyperpack

X50 + Hyperpack 1 covers a factory. X125 stacks + Hyperpack 10 covers a microgrid. One platform, one design language.
